DAB submersible pump NOVA
Submersible pump suitable for clean water with solid particles. Pump housing, impeller, cover and grille are made of technopolymer. Motor housing, motor shaft, nuts and bolts are made of stainless steel. Triple seal in oil bath. Asynchronous motor suitable for continuous submersible operation. The stator is enclosed in a completely hermetically sealed stainless steel casing. Rotor mounted between oversized self-lubricating ball bearings. Built-in bimetal thermal protection and permanently engaged capacitor. The vertical press and electronic float make the pump suitable for installation in small wells. Flow rate: from 1 to 16 m3/h with a delivery head of up to 10 metres. Liquid temperature range: from 0°C to 35°C. Pumped liquid: turbid water without fibres. Maximum immersion depth: 7 metres. Installation: fixed or portable in vertical position. Protection class: IP 68 (class F).
- Worldwide delivery
- Over 50 years of experience
Conditiongroup 06140
| Favourite | Compare | Item | description | H at Qmax | capacity | pack. | packaging | Stock | Listprice | Order | ||||||||||||||||||||||||||
| 614032 | submersible pump Nova 180 M-A + float | 4,95m | 4,5 m³/h | 1 | 1 | € 190,00 | ||||||||||||||||||||||||||||||

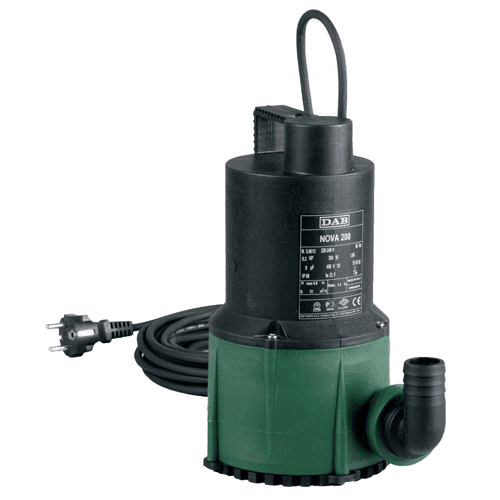

| 614033 | submersible pump Nova 180 M-NA | 4,95m | 4,5 m³/h | 1 | 1 | € 171,00 | ||||||||||||||||||||||||||||||

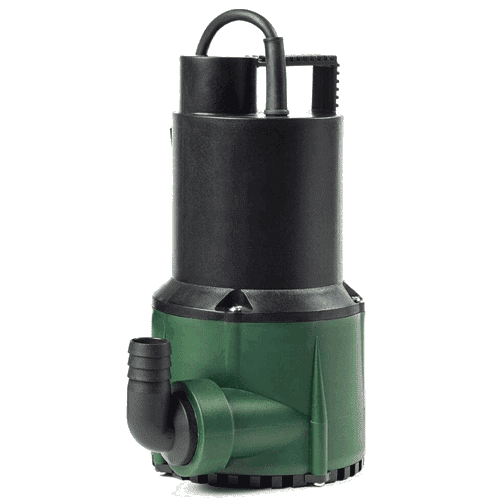

| 614052 | submersible pump Nova 200 M-NA | 7,1m | 12 m³/h | 1 | € 206,00 | |||||||||||||||||||||||||||||||
| 614050 | submersible pump Nova 300 + float | 1m | 9 m³/h | 1 | 1 | € 215,00 | ||||||||||||||||||||||||||||||

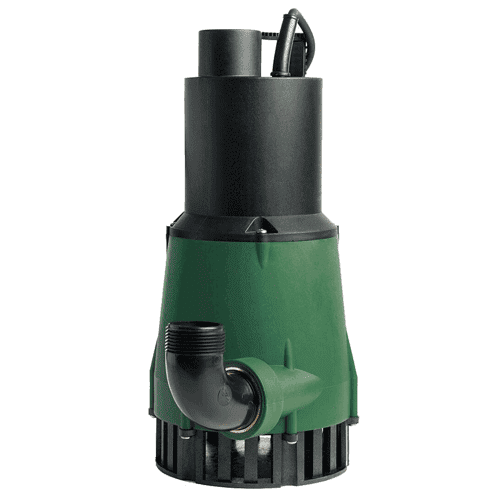

| 614037 | submersible pump Nova 600 M-NA | 10,2m | 15 m³/h | 1 | 1 | € 331,00 | ||||||||||||||||||||||||||||||
